Description

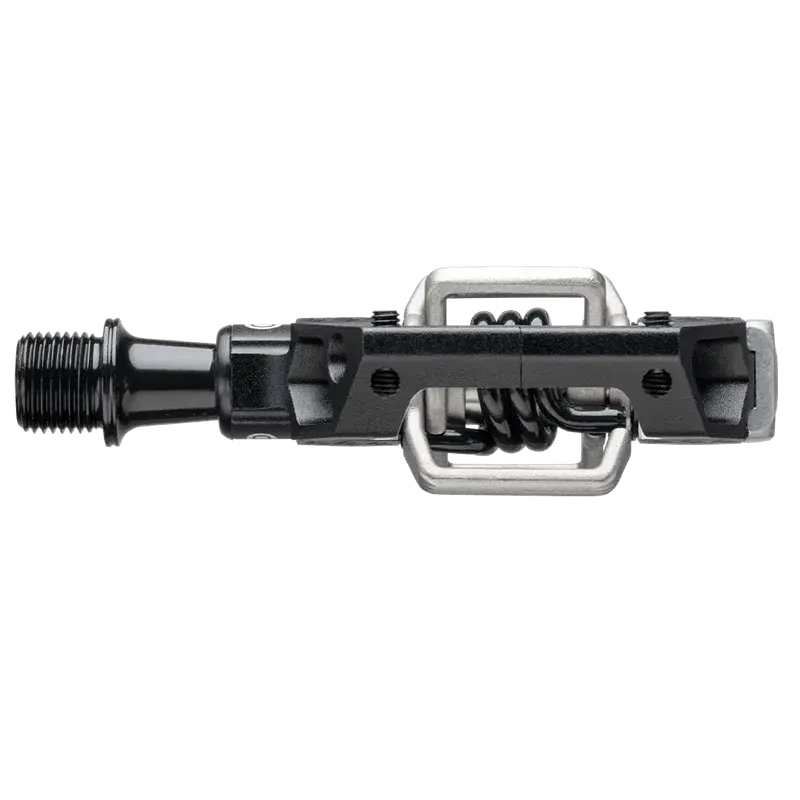

Full suspension or entirely rigid, upon a mountain top or deep in the woods, it’s up to you to define your trail. Our new Mallet Trail pedal fills the missing piece in our clip-in range, sitting perfectly between our Candy and Mallet E pedals. Equipped with a long spindle for stability and speed, two adjustable pins per side for added traction, and our eggbeater system with 4-sided entry and superior mud shedding, the Mallet Trail is ready to join you on your next adventure.
- Optimized platform size and surface for trail/gravel riding
- Long spindle, 57mm q-factor for more shoe clearance and stability at speed
- Integrated traction pad technology to customize and optimize the shoe/pedal interface
- 2 adjustable pins per side for grip
- Hex alloy endcap for durability
- 4-sided entry / superior mud shedding
- Customizable float & release angle
| BODY MATERIAL | 6061-T6 Aluminum |
| BODY DIMS (L X W) | 78mm x 74mm |
| WING MATERIAL | 17-4PH Stainless |
| SPINDLE LENGTH | 57mm |
| ADJUSTABLE PINS | 2 per side |
| INNER BEARING TYPE | Igus LL-glide bearing |
| OUTER BEARING TYPE | Enduro MAX cartridge bearing |
| ENDCAP | Hex alloy |
| SPINDLE MATERIAL | Forged SCM 435 Chromoly Steel |
| SPRING MATERIAL | 300 series stainless steel |
| MAX RIDER WEIGHT | No restriction |
| WEIGHT | 344g per pair |
| INCLUDED CLEAT TYPE | 15° / 20° Standard Release, 6° Float |
| CLEAT NOTICE | Third-party cleats are not approved for use with Crankbrothers pedal systems. Using non-Crankbrothers cleats can reduce pedal lifespan and voids the pedal warranty. |
| WARRANTY | 5 years |
