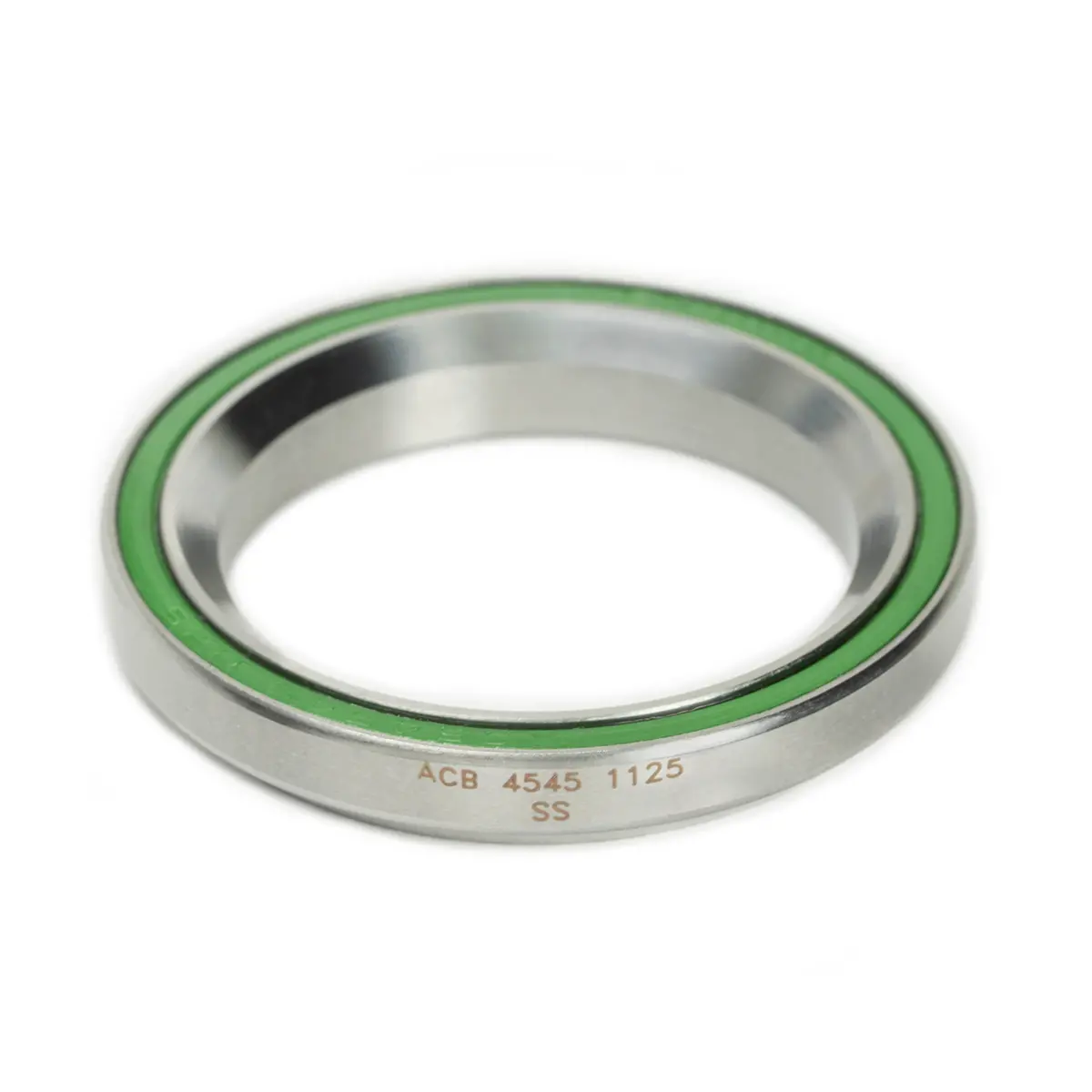

Enduro HS Angular Contact Bearing – 1.125″ ID, 30.5mm OD, 41.8mm Width, 6.5mm Thickness, 45°/45° Contact Angle

Description

/* RTE style begin */.rich ol, .rich ul { margin-top: 0px; margin-bottom: 0px;} .rich .imgbrdr { border: solid 1px; } .richIcon { display: inline-block; background-image: url(Images/sprite_main5.png); background-repeat: no-repeat; width: 15px; } .richAttach { background-position: -2px -122px; } .richImg { background-position: -2px -1120px; } .richScreen { background-position: -24px -1032px; } .richArticle { background-position: -24px -1054px; } /* Correct box */ .rich .GrayBox { border: solid 1px #CCCCCC; background-color: #F9F9F9; padding: 4px; /*margin: 4px;*/ width: 98%; } .rich .hintcell { height: 36px; width: 32px; vertical-align: middle; } .rich .warncell { height: 36px; width: 32px; vertical-align: middle; } .rich .boxcontent{ width: 100% } .rich pre { font-size:1.3em } .rich iframe{ border: none; } .rich iframe.iframeBorder, .rich img.iframeBorder { border: solid black 1px; } .rtetable > tbody > tr > td, .rtetable > tr > td { white-space: nowrap } .rtetable > tbody > tr:first-child > td, .rtetable > tr:first-child > td { background-color: silver } .rich pre.source-highlighted {background-color: #F0F0FF;} .rich pre.source-highlighted .nu, .rich .sourcetable .nu { color: brown; } .rich pre.source-highlighted .kw, .rich .sourcetable .kw { color: blue; } .rich pre.source-highlighted .cmt, .rich .sourcetable .cmt { color: green; } .rich pre.source-highlighted .sl, .rich .sourcetable .sl { color: brown; } .rich pre.source-highlighted .br, .rich .sourcetable .br {color: darkgreen; } .rich pre.source-highlighted .add, .rich .sourcetable .add { background: palegreen; } .rich pre.source-highlighted .del, .rich .sourcetable .del { background: pink; } .rich table, .rich tr, .rich td, .rich img, .rich iframe { cursor: default; } .layout .rtecell { vertical-align: top; font-size: small; } .rtetable > tbody > tr > td, .rtetable > tr > td { vertical-align: top; } .rich p{ margin:0px 5px 0px 0px; } .rich .align-center{ text-align: center; } .rich .align-right{ text-align: right; } .rich .align-left{ text-align: left; } .rich li[style*=’text-align: center’], .rich li[style*=’text-align: right’] { list-style-position: inside; } .rtetable { empty-cells: show; border: solid 1px black; border-collapse:collapse; } .rtetable > tbody > tr > td, .rtetable > tr > td { border: solid 1px black; height: 1.5em; min-width: 20px; padding: 0px 5px } .rich table {font-family: arial; font-size: small} .rich blockquote.shift { margin-right: 0px;margin-top: 0px; margin-bottom: 0px; } .rich img[data-expand] { display: block; } .rich p, .rich p.richp {font-family: arial; font-size: small} .rich blockquote.shift h1, .rich blockquote.shift h2, .rich blockquote.shift h3, .rich blockquote.shift h4, .rich blockquote.shift h5, .rich blockquote.shift h6 { margin-top: 0px; } .rich, .rich * { word-wrap: break-word; } .sourcetable {background-color: #F0F0FF; font-family: monospace; width: 100%} .sourcetable tr { margin: 0px; padding: 0px; } .sourcetable td { margin: 0px; padding: 0px; white-space: nowrap; } .sourcetable > tbody > tr > td:first-child, .sourcetable > tr > td:first-child { width:1px; } .filelist { /*display:inline-block;*/ padding: 5px; } .rich .toc { /*display:inline-block;*/ padding: 5px; } .rich .toc .header,.rich .wikilist .header,.rich .filelist .header { font-size: 1.7em; } .rich .toc li,.rich .filelist li { margin: 5px 0px; } .rich .wikilist div { margin: 10px; } .rich .layout {min-height: 2.5em; display:table; width:100%; border-spacing:5px; table-layout:fixed; empty-cells: show;} .rich .layout .rtecell {display:table-cell; height: 2.5em} .rich .layout .rteside {width: 25%} /* .rtetable { border-collapse:collapse; } .rtetable > tbody > tr > td, .rtetable > tr > td { border: 1px solid #ddd; padding: 7px 10px; vertical-align: top; text-align: left; }*/ .rich blockquote.realbq { border-left-color: lightblue; border-left-width: 1px; border-left-style: solid; margin-top: 0px; margin-bottom: 0px; padding-left: 5px; } .rich body {font-family: arial; font-size: small} .rich .GrayBox { margin-left: 8px; } .rich .sourcetable { font-size:1.3em;} /* RTE style end */

ACB 4545 1125 BO – 1-1/8″ Black Oxide Angular Contact Headset bearing (30.5mm x 41.8mm x 6.5mm: 45×45 deg)

• The Enduro version of this bearing is double sealed
• This bearing is interchangeable with 7 or 8mm deep versions of this size

Angular-contact headset bearing featuring anti-corrosion Black oxide/Magnetite coated 52100 High-Carbon Chromium alloy races paired with grade 10 Balls. Black Oxide coating provides an extra level of corrosion resistance and extended worry-free performance. All Enduro Black Oxide headset bearings carry a two-year warranty.

This size bearing is also known in the bike Industry by these part numbers:
MR042
870E
MR121
MR070
MR084
MR116
TH-870E
MH-P08

The Enduro line of headset bearings consists of two basic performance levels that are a substantial step up from standard bike industry specifications. Enduro “entry-level” headset bearings feature premium materials like Black-Oxide treated races and carry a two year warranty, while our premium 440C stainless headset bearings carry a full lifetime warranty.

All Enduro bearings are always engineered with the largest balls possible and feature dual lip labyrinth seals for maximum protection against sweat and the elements and to contain the 90% high pressure water proof grease, keeping everything running smoothly for the duration. The Angular Contact (A/C) design of Enduro headset bearings allow all balls in the bearing to engage the load, spreading the force over a larger surface area minimizing any possibility of premature wear and greatly extending bearing life.

Static load – 980lbf / 4.35kN
Weight – 19.24g
