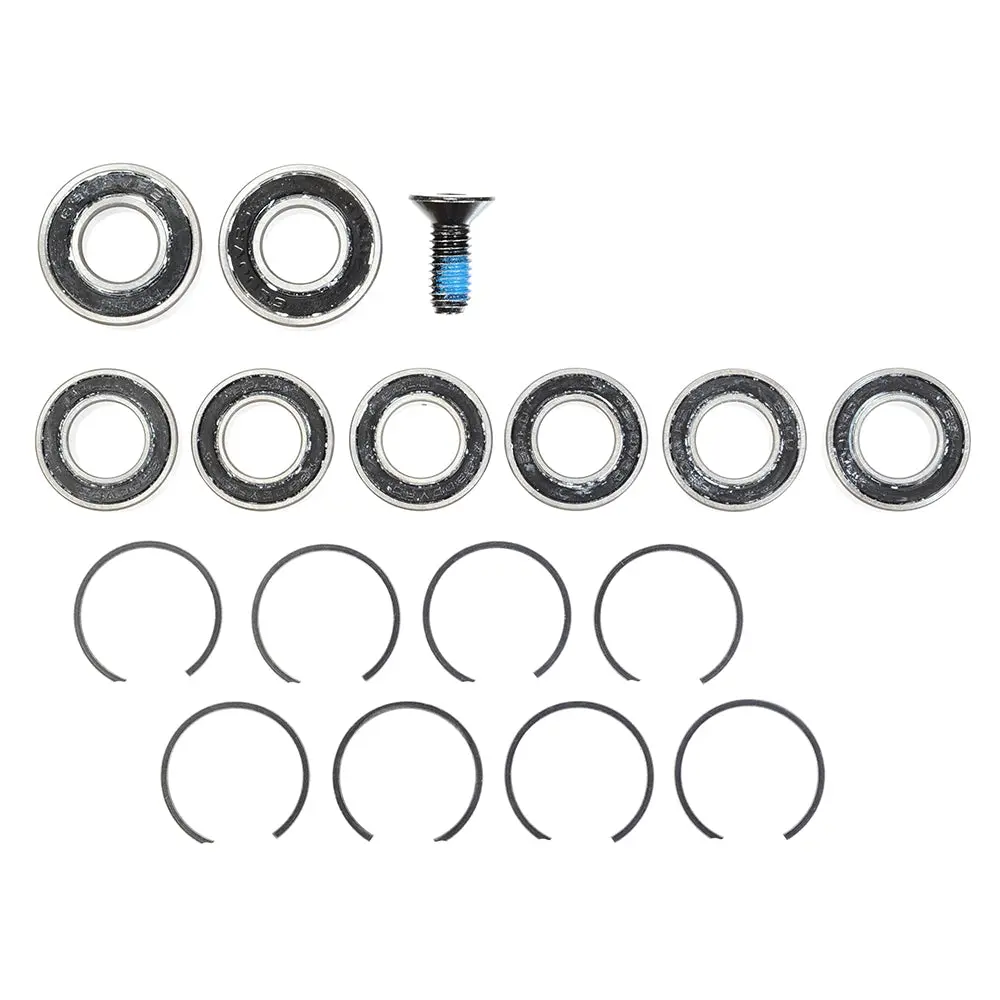

Habit Carbon Spares Kit – Compatible with 2023+ Models

CANNONDALE HABIT CARBON SPARES 2023+

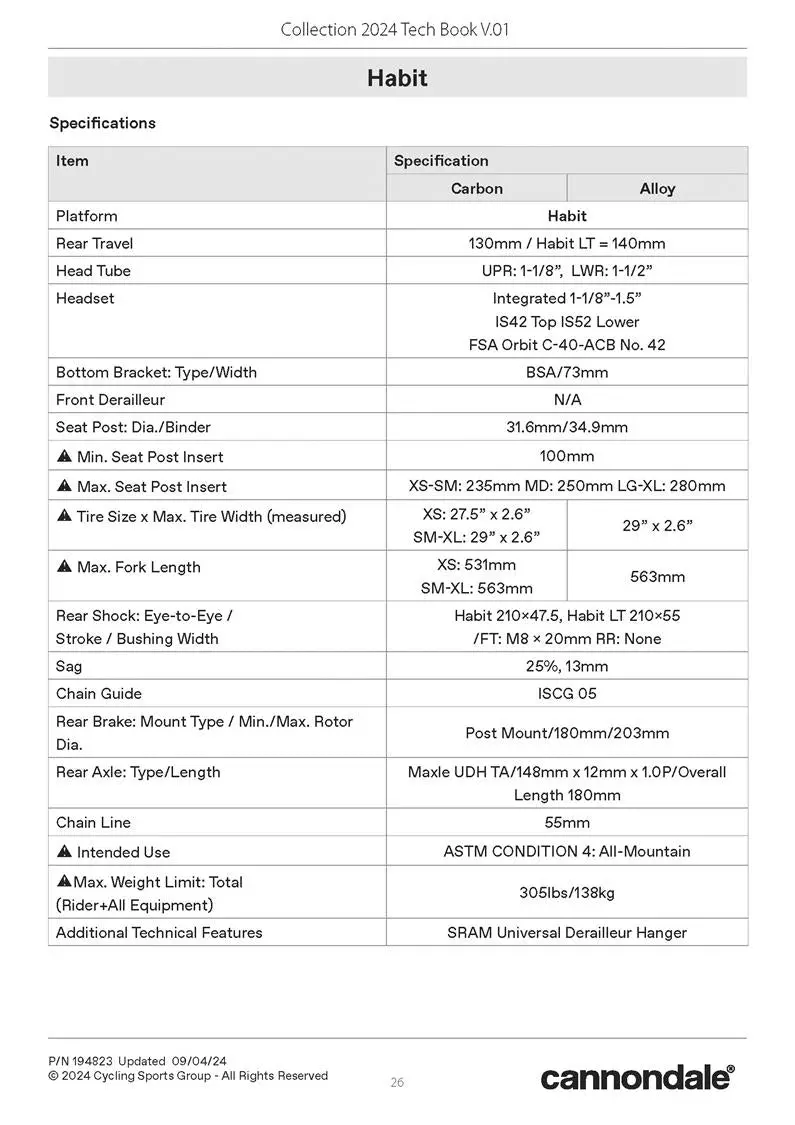

SPECIFICATIONS

Rear Travel – 130mm / Habit LT = 140mm

Head Tube – UPR: 1 -1/8 in, LWR: 1-1/2 in

Headset – Integrated 1-1/8”-1.5”/ IS42 Top IS52 Lower/ FSA Orbit C-40-ACB No. 42

Bottom Bracket: Type / Width – BSA/73mm

Front Derailleur – N/A

Seat Post: Dia./Binder – 31.6mm / 34.9mm

Minimum Seat Post Insert – 100 mm

Maximum Seat Post Insert –XS-SM: 235mm MD: 250mm LG-XL: 280mm

Tire Size x Maximum Width – XS: 27.5” x 2.6”, SM-XL: 29” x 2.6”

Maximum Fork Length – XS: 531mm, SM-XL: 563mm

Rear Shock: Eye-to-Eye / Stroke / Bushing Width – Habit 210×47.5, Habit LT 210×55 /FT: M8 x 20mm RR: None

Sag – 25%, 13 mm

Chain Guide – ISCG05

Rear Brake Mount / Type – Post Mount/180mm/203mm

Axles: Type / Length – Maxle UDH TA/148mm x 12mm x 1.0P/Overall Length 180mm

Chain Line – 55mm

Maximum Weight Limit: Total – 138kg
