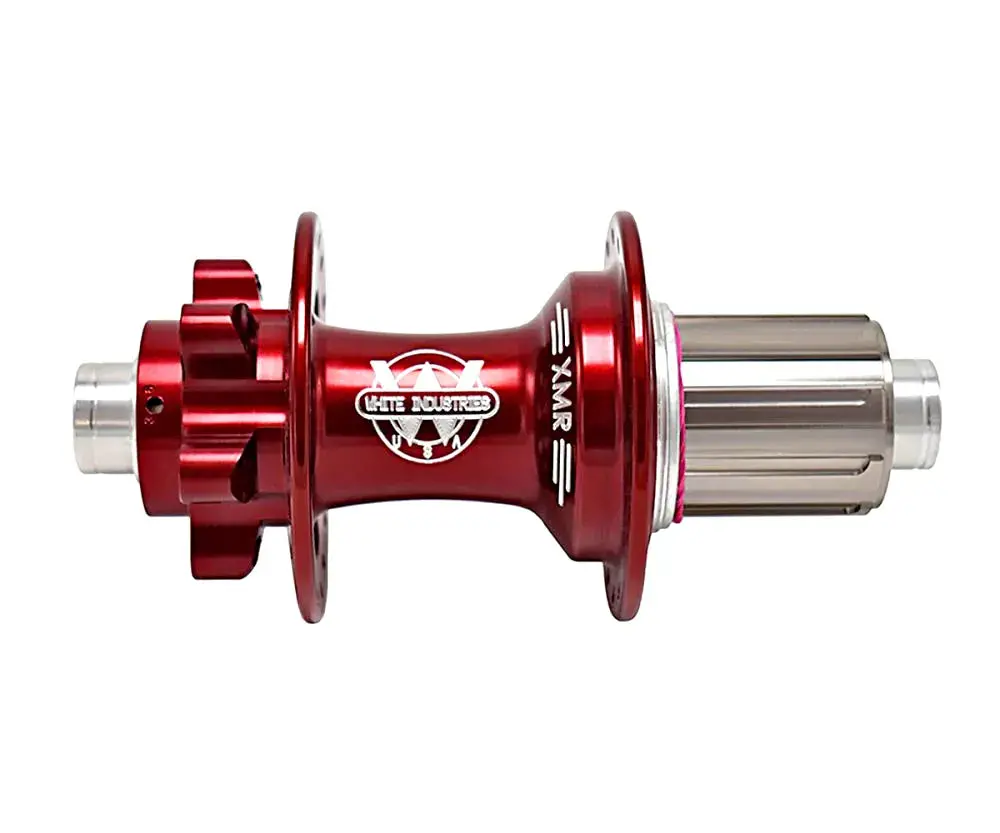

White Industries XMR Rear Hub – 12mm × 142mm Micro Spline

Description

/* RTE style begin */.rich ol, .rich ul { margin-top: 0px; margin-bottom: 0px;} .rich .imgbrdr { border: solid 1px; } .richIcon { display: inline-block; background-image: url(Images/sprite_main5.png); background-repeat: no-repeat; width: 15px; } .richAttach { background-position: -2px -122px; } .richImg { background-position: -2px -1120px; } .richScreen { background-position: -24px -1032px; } .richArticle { background-position: -24px -1054px; } /* Correct box */ .rich .GrayBox { border: solid 1px #CCCCCC; background-color: #F9F9F9; padding: 4px; /*margin: 4px;*/ width: 98%; } .rich .hintcell { height: 36px; width: 32px; vertical-align: middle; } .rich .warncell { height: 36px; width: 32px; vertical-align: middle; } .rich .boxcontent{ width: 100% } .rich pre { font-size:1.3em } .rich iframe{ border: none; } .rich iframe.iframeBorder, .rich img.iframeBorder { border: solid black 1px; } .rtetable > tbody > tr > td, .rtetable > tr > td { white-space: nowrap } .rtetable > tbody > tr:first-child > td, .rtetable > tr:first-child > td { background-color: silver } .rich pre.source-highlighted {background-color: #F0F0FF;} .rich pre.source-highlighted .nu, .rich .sourcetable .nu { color: brown; } .rich pre.source-highlighted .kw, .rich .sourcetable .kw { color: blue; } .rich pre.source-highlighted .cmt, .rich .sourcetable .cmt { color: green; } .rich pre.source-highlighted .sl, .rich .sourcetable .sl { color: brown; } .rich pre.source-highlighted .br, .rich .sourcetable .br {color: darkgreen; } .rich pre.source-highlighted .add, .rich .sourcetable .add { background: palegreen; } .rich pre.source-highlighted .del, .rich .sourcetable .del { background: pink; } .rich table, .rich tr, .rich td, .rich img, .rich iframe { cursor: default; } .layout .rtecell { vertical-align: top; font-size: small; } .rtetable > tbody > tr > td, .rtetable > tr > td { vertical-align: top; } .rich p{ margin:0px 5px 0px 0px; } .rich .align-center{ text-align: center; } .rich .align-right{ text-align: right; } .rich .align-left{ text-align: left; } .rich li[style*=’text-align: center’], .rich li[style*=’text-align: right’] { list-style-position: inside; } .rtetable { empty-cells: show; border: solid 1px black; border-collapse:collapse; } .rtetable > tbody > tr > td, .rtetable > tr > td { border: solid 1px black; height: 1.5em; min-width: 20px; padding: 0px 5px } .rich table {font-family: arial; font-size: small} .rich blockquote.shift { margin-right: 0px;margin-top: 0px; margin-bottom: 0px; } .rich img[data-expand] { display: block; } .rich p, .rich p.richp {font-family: arial; font-size: small} .rich blockquote.shift h1, .rich blockquote.shift h2, .rich blockquote.shift h3, .rich blockquote.shift h4, .rich blockquote.shift h5, .rich blockquote.shift h6 { margin-top: 0px; } .rich, .rich * { word-wrap: break-word; } .sourcetable {background-color: #F0F0FF; font-family: monospace; width: 100%} .sourcetable tr { margin: 0px; padding: 0px; } .sourcetable td { margin: 0px; padding: 0px; white-space: nowrap; } .sourcetable > tbody > tr > td:first-child, .sourcetable > tr > td:first-child { width:1px; } .filelist { /*display:inline-block;*/ padding: 5px; } .rich .toc { /*display:inline-block;*/ padding: 5px; } .rich .toc .header,.rich .wikilist .header,.rich .filelist .header { font-size: 1.7em; } .rich .toc li,.rich .filelist li { margin: 5px 0px; } .rich .wikilist div { margin: 10px; } .rich .layout {min-height: 2.5em; display:table; width:100%; border-spacing:5px; table-layout:fixed; empty-cells: show;} .rich .layout .rtecell {display:table-cell; height: 2.5em} .rich .layout .rteside {width: 25%} /* .rtetable { border-collapse:collapse; } .rtetable > tbody > tr > td, .rtetable > tr > td { border: 1px solid #ddd; padding: 7px 10px; vertical-align: top; text-align: left; }*/ .rich blockquote.realbq { border-left-color: lightblue; border-left-width: 1px; border-left-style: solid; margin-top: 0px; margin-bottom: 0px; padding-left: 5px; } .rich body {font-family: arial; font-size: small} .rich .GrayBox { margin-left: 8px; } .rich .sourcetable { font-size:1.3em;} /* RTE style end */

Note: As the White Industries catalogue is diverse, we don’t stock every variant or colour. However, we place regular airfreight orders. If an item is in stock at White Industries, we can usually have it here within a week. Even if it’s not in stock, they can often assemble it for us, and we can have it within three weeks at most. Feel free to get in touch if you’re after something specific!

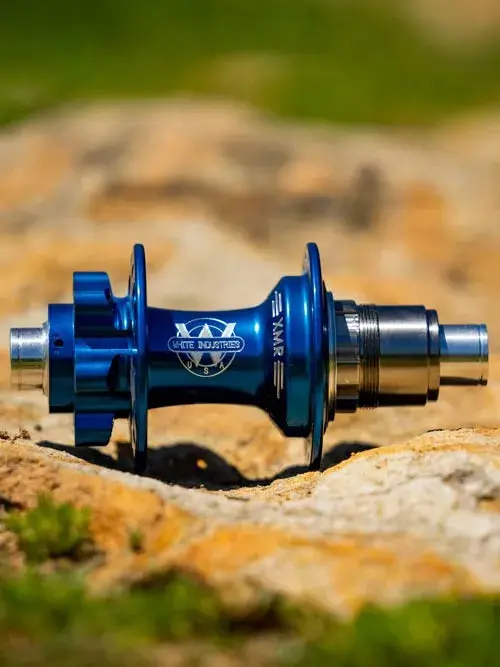

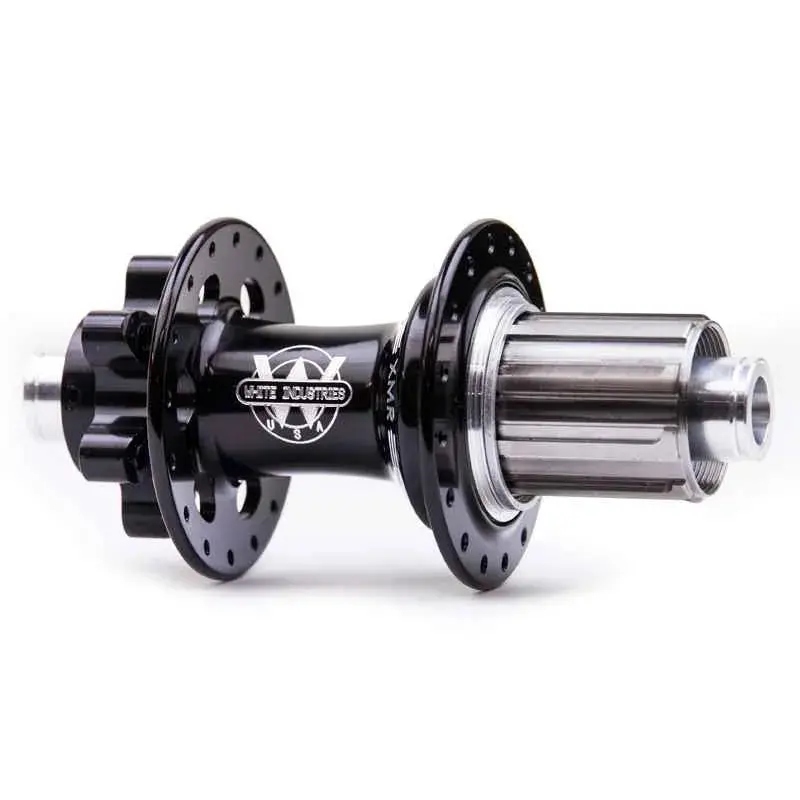

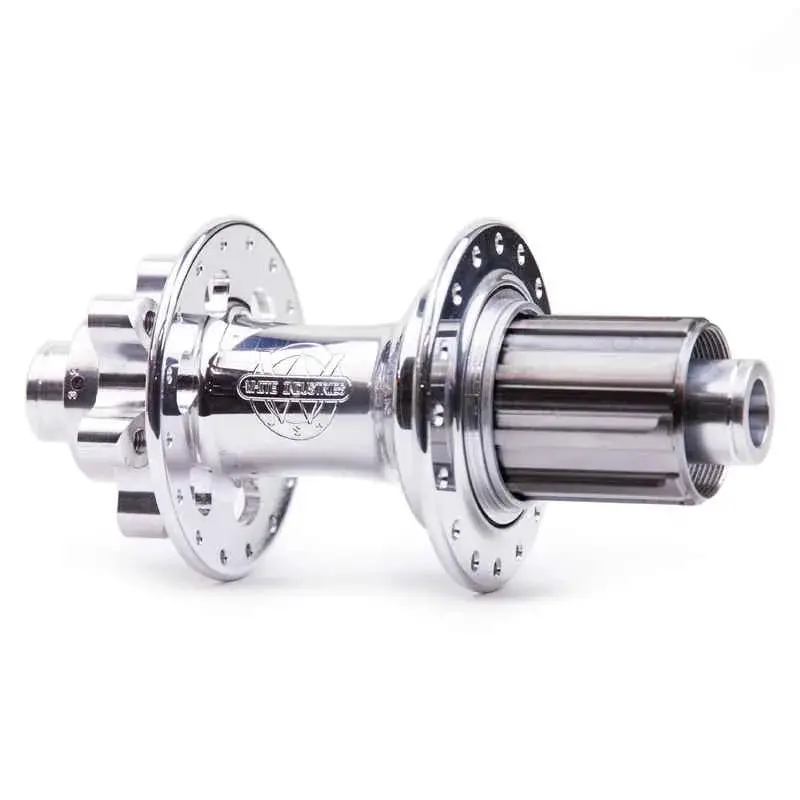

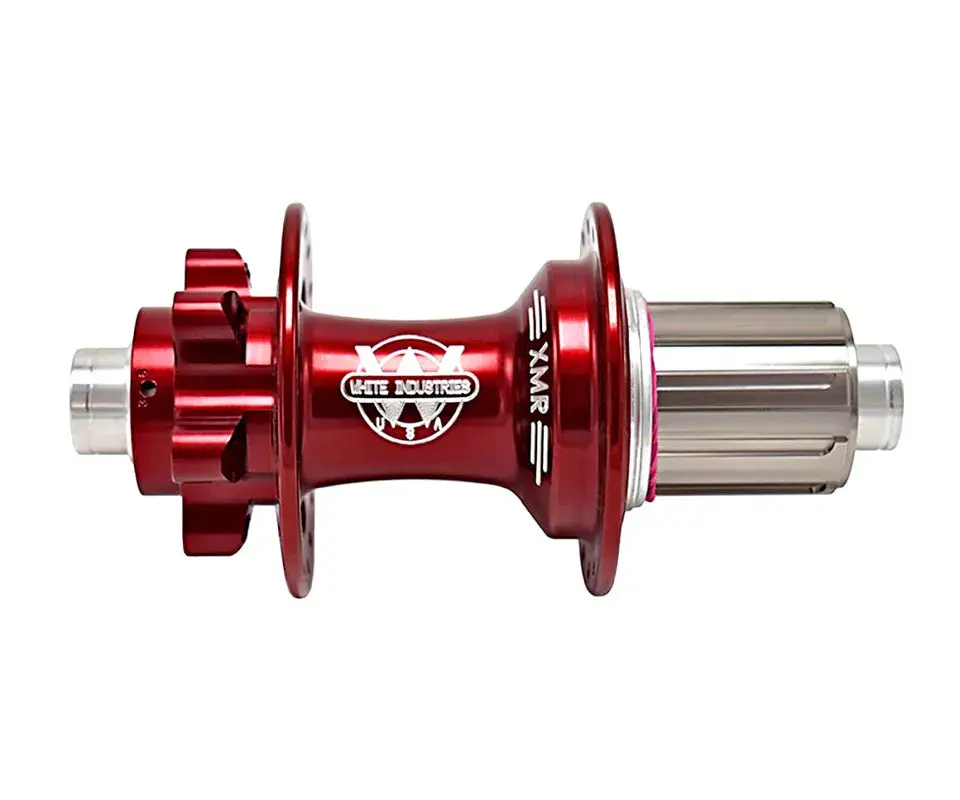

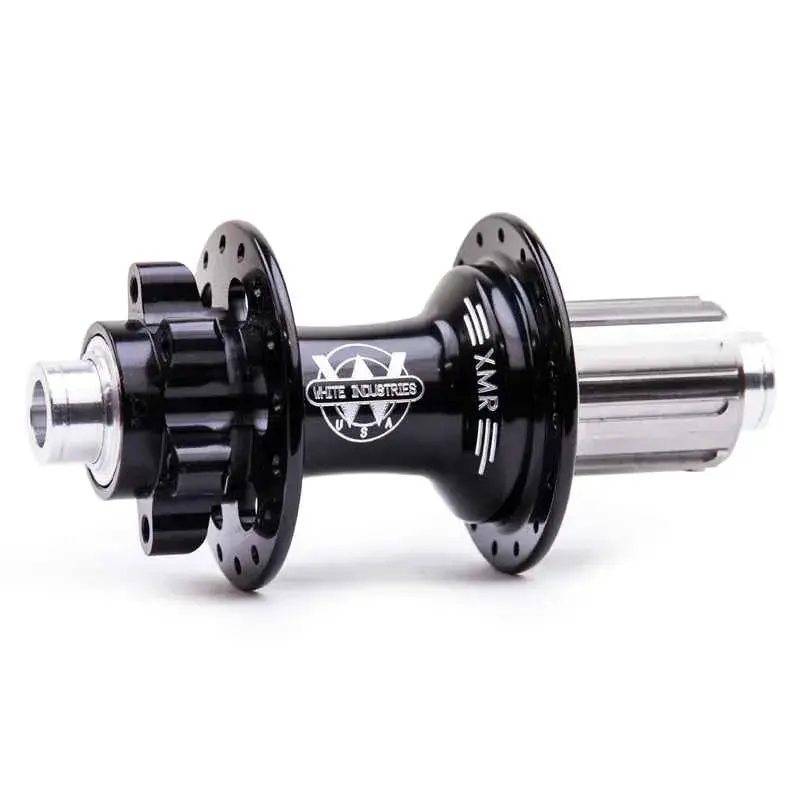

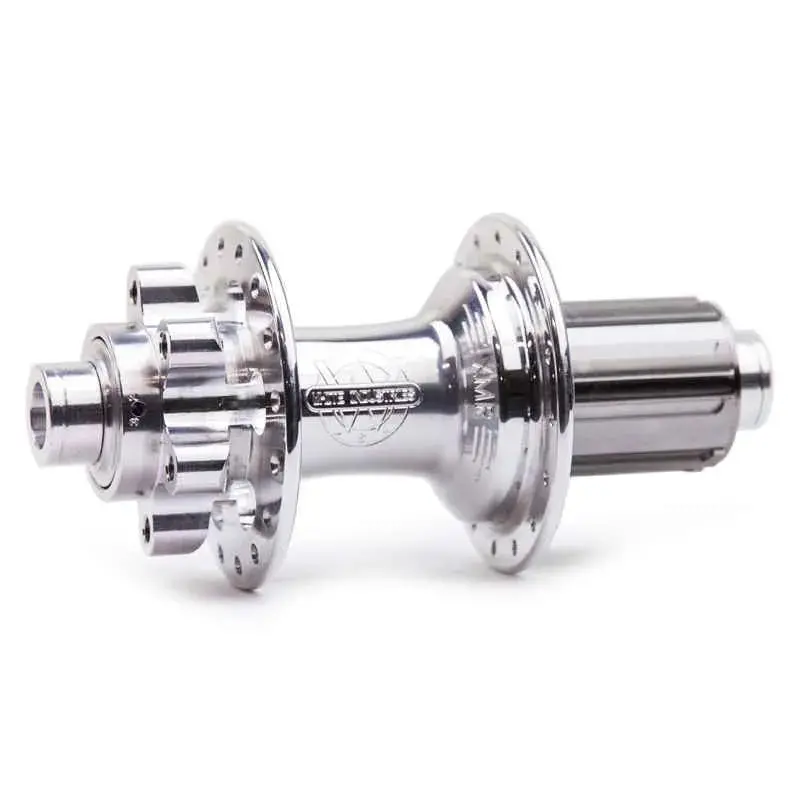

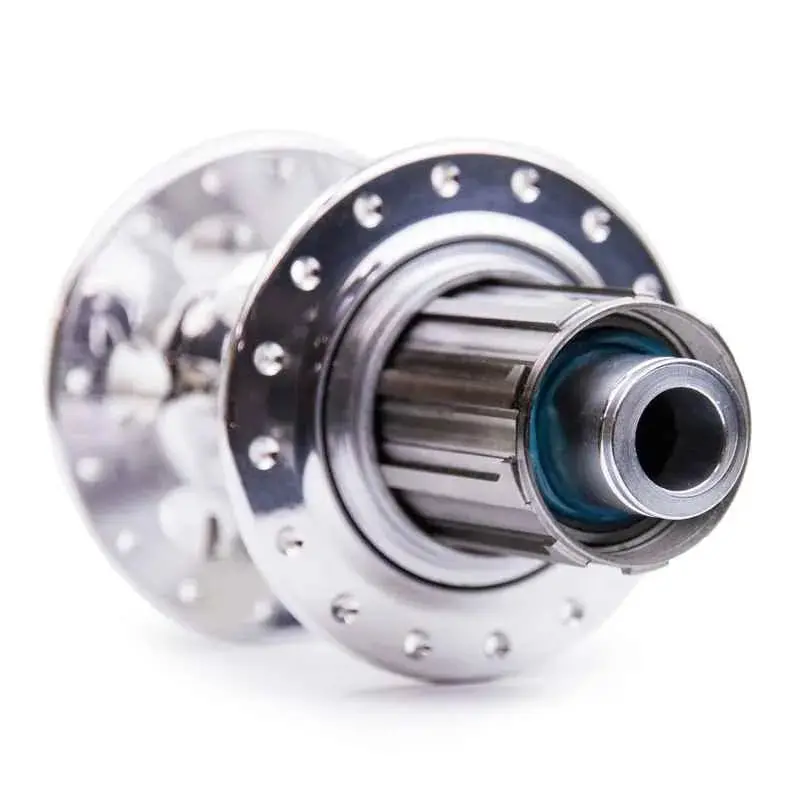

Our XMR (Cross/Mountain/Road) hubs are designed around the ISO 6-bolt rotor mounting interface as opposed to the Center Lock mounting standard used on our CLD hub. The 6-bolt system requires a slightly larger flange diameter which allows for a classic look with machined “windows” in the flanges. From road bikes to trail bikes, the XMR is a solid choice for 6-bolt set ups. Made in our shop from U.S. sourced 6061-T6 aluminum, they’re available in a range of drillings, colors, and axle configurations.

A question we always get about our disc hubs is, “CLD or XMR? Which is better?”. Neither is “better” than the other. Both share the same internals and the differences really come down to the respective designs having to accommodate the two different rotor mounting interfaces. Bottom line is you really can’t go wrong with either hub!

Features

• U.S. made 6061-T6 aluminum
• Enduro bearings
• 6/4 titanium driver
• 3-pawl, 48 point (7.5 degree) engagement
• Compatible with 6-bolt rotors
• Cassette spacer included only on XDR freehub bodies
  • Available separately for Shimano HG11 (part# SPACER11)
• Radial spoke lacing not recommended

Specs

• 256g
• Drillings: 24, 28, 32, 36, 40, 48
• Axles:
  • 12mm x 142mm Thru
  • 10mm x 135mm QR

Bearings

• All Enduro ABEC 5 except 3802W (ABEC 3)

Driver Style	Left hub shell bearing	Right hub shell bearing	Inner driver bearing	Outer driver bearing
Shimano Hyperglide 11 speed	61902-LLU/LLB	61902-LLU/LLB	3802W LLB	61902-LLU/LLB
Shimano Micro Spline	61902-LLU/LLB	61902-LLU/LLB	3802W LLB	3802W LLB
SRAM XD/XDR	61902-LLU/LLB	61902-LLU/LLB	3802W LLB	3802W LLB
Campy 11 speed	61902-LLU/LLB	61902-LLU/LLB	3802W LLB	3802W LLB

Wheelbuilding specs

• Spoke hole diameter
  • 2.6mm

Left flange diameter	Right flange diameter	Center to left flange	Center to right flange
60mm	60mm	33mm	19.5mm

Technical Documents

• Rear Hub Assembly
• Ratchet Ring and Pawl Identification
• Ratchet Ring Removal and Installation
• Freehub Body Identification Guide
