Description
Introduction

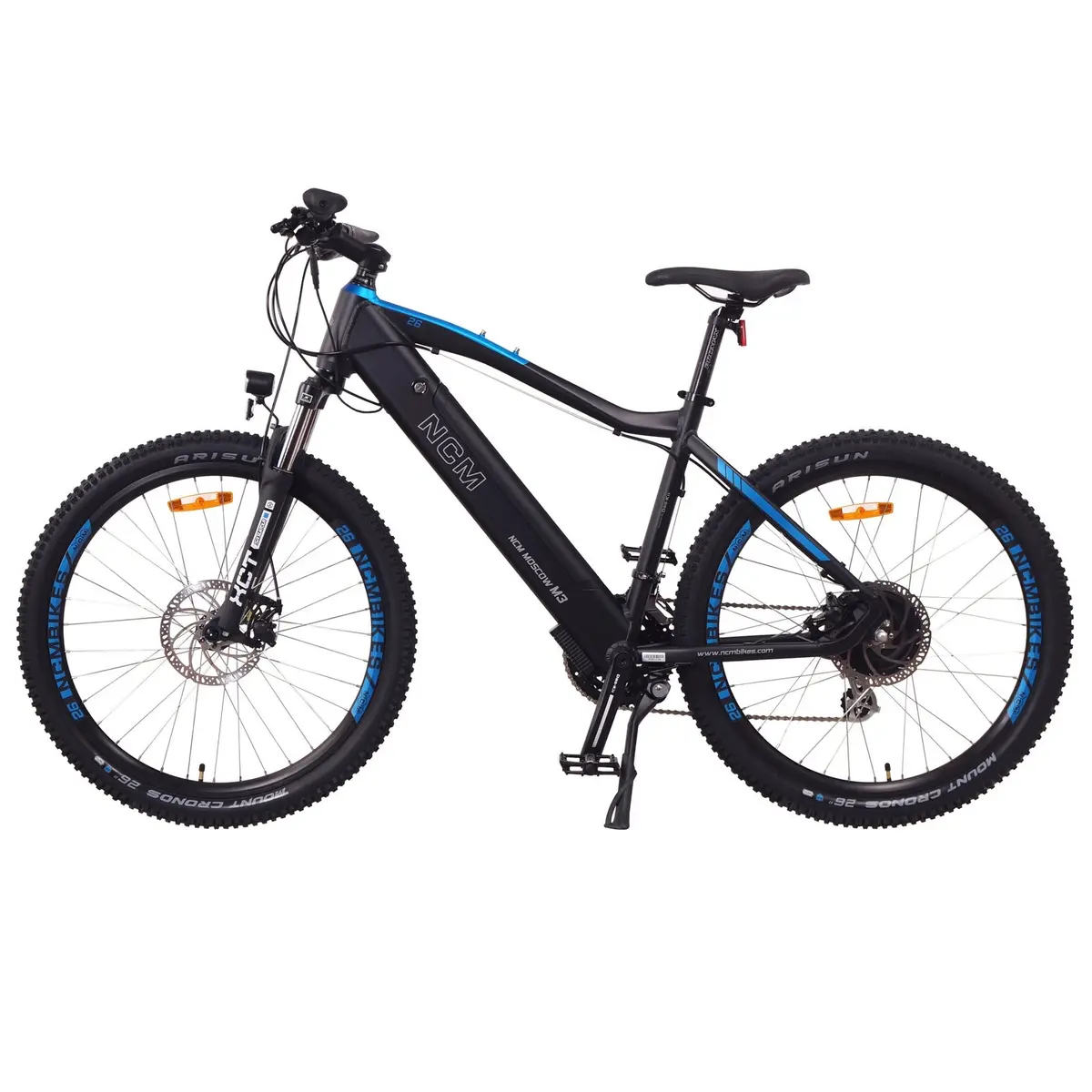

Rugged and capable, the NCM Moscow plus is hugely versatile. Focusing on usability and capability, this E-bike is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, while makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.
Key Features
- Ergonomic bicycle Grips
- Comfortable sitting posture
- All important controls easily accessible
- Supplied with 48V to deliver a high output power
- Over 576Wh capacity for a longer distance
- Reach up to 110 km (depending on terrain conditions & power level settings)

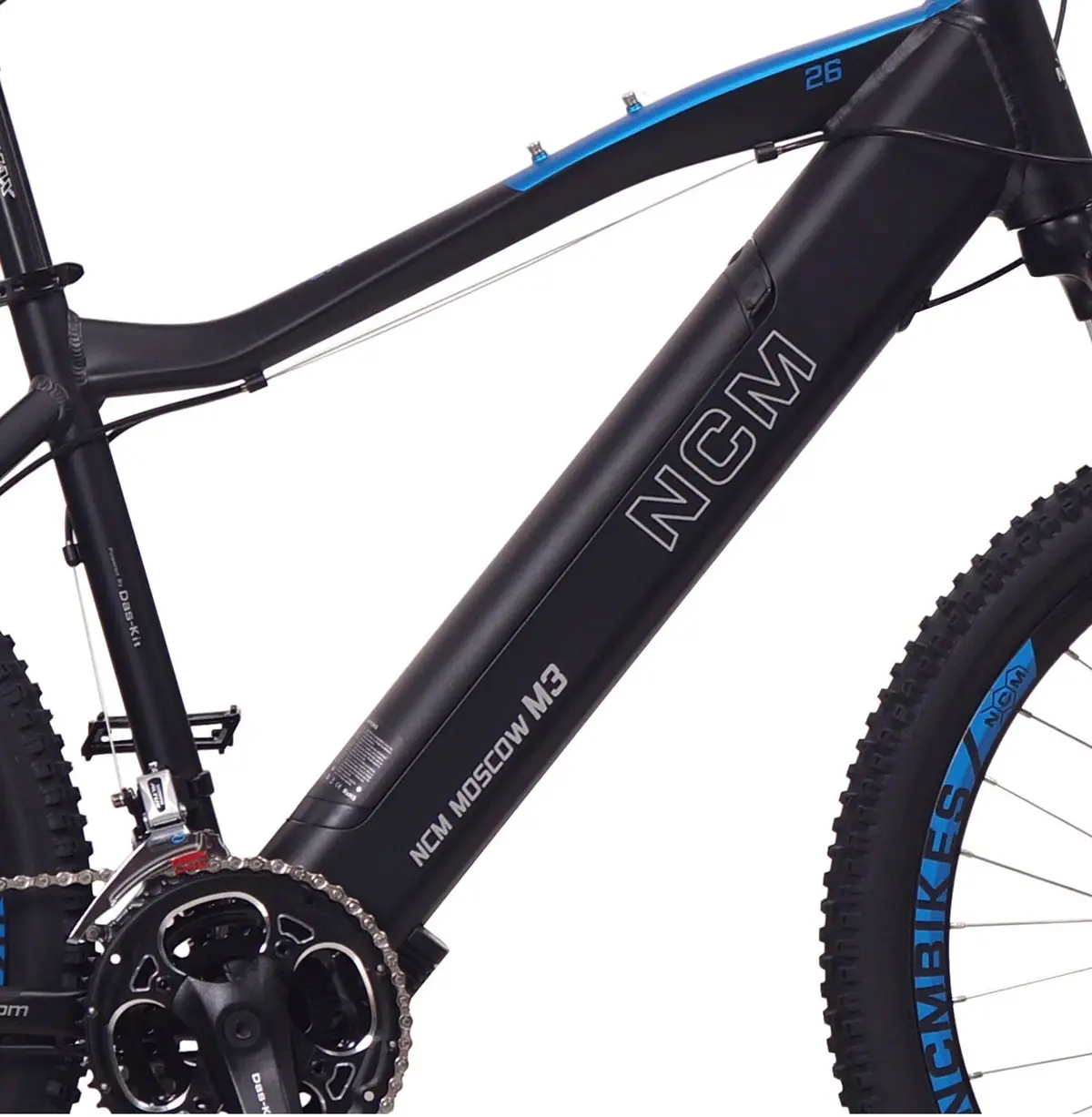

- Battery integrated in the frame for better aesthetics
- Easily removable battery so you can charge it anywhere
- A built-in USB port with 5V to charge mobile phones
- Equipped with Throttle and Pedal assist.
BIKE COMPONENTS
Frame: Alu. 6061, 26″*18.1 inches / 27.5″*18.9 inches / 29″*20.5 inches
Suspension Fork: Suntour, XCT
Brake: Hydra Disc Brakes
Freewheel: 7 Speed, 14-28T
Tire: Arisun Mount Cronos
Saddle: VELO, VL-3410
Stem: Promax, Alu.MA-471
Crank: DAS-KIT, CM48,28/38/48T
Shifter Left: Shimano, Altus, F: SL-M315-L, 3 Speed
Shifter Right: Shimano, Altus, R: SL-M315-7R, 7 Speed
Front Derailleur: Shimano, Altus, FD-M313
Rear Derailleur: Shimano, Altus, RD-M310
Chain: KMC, Z51
ELECTRIC COMPONENTS
Battery: Das-Kit, i6-4812, 48V 12AH, 576WH
Hub Motor Rated / Peak Power: Das-Kit, X15, 48V 250wh
Controller: Das-Kit, CT5-i6, 48V 15A
Charger: Das-Kit, 48V2A
Display: Das-Kit, L7
Front Light: DH002, 48V, 40 Lux
WEIGHT
Net Weight (with battery): 57.0 lbs
Battery Weight: 7.5 lbs
Max Load (driver+bike): 275.0 lbs
Warranty
- 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
- 2 year warranty on the bike frame
- Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
- Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.
About NCM
NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies.
Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.
Notes
In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. For more information contact us on 0390695443. Visit our Youtube channel for Assembly and New Arrivals Videos. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.
IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.
Certain bike components such as tyres may change based on supplier availability, but all replacements will be of the same quality.
