Description

Introduction

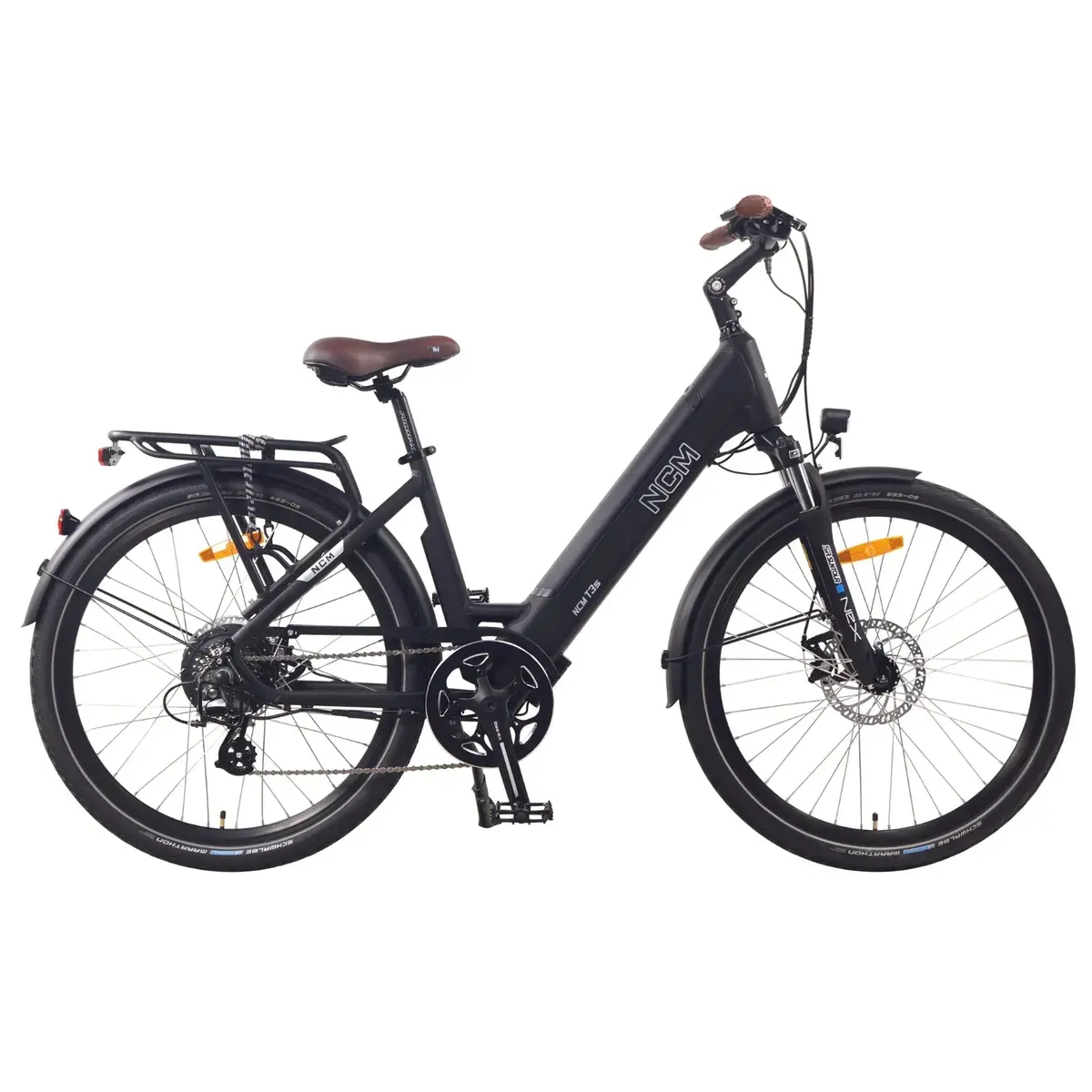

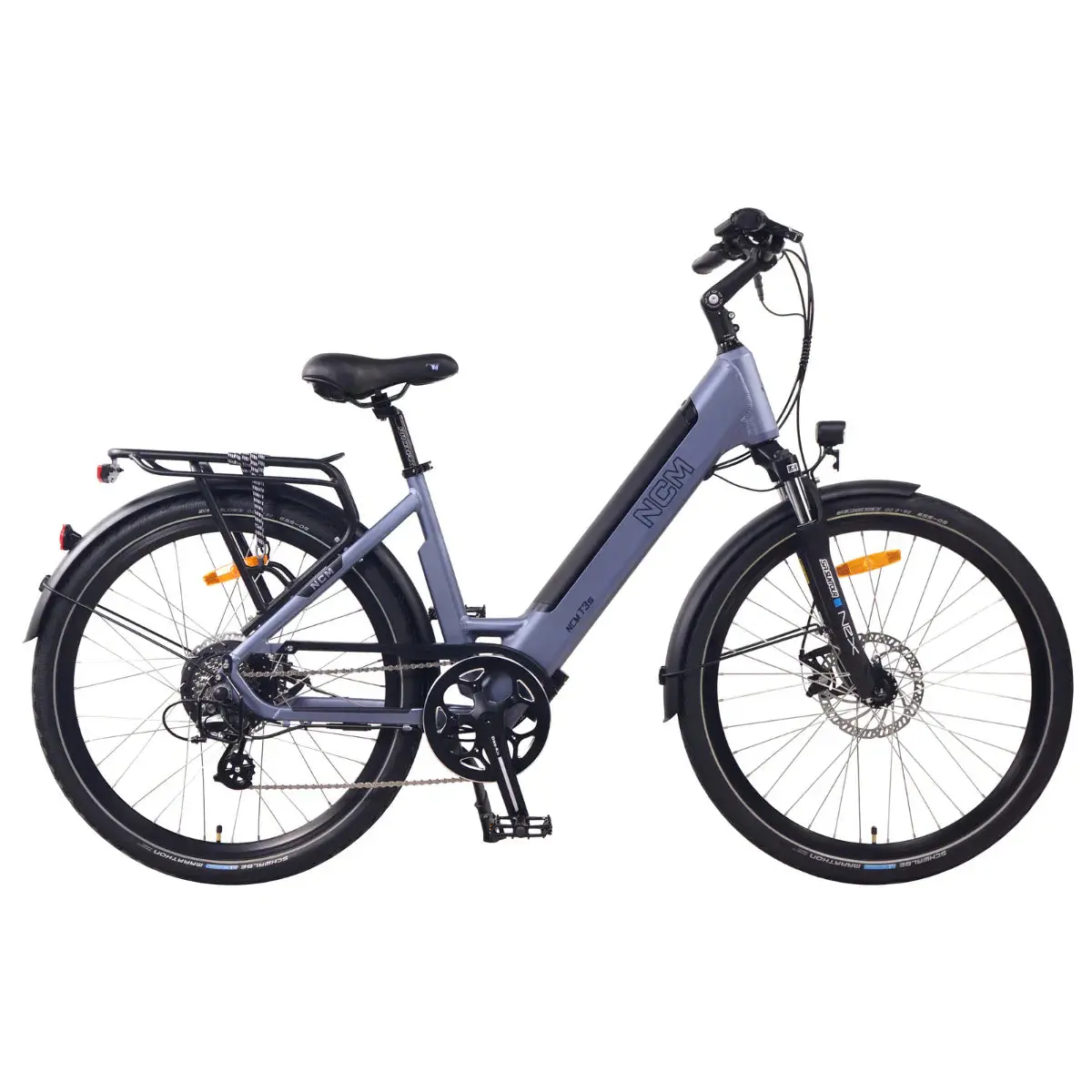

The new NCM T3S is the brand new generation of the NCM brand. Successor to the flagship NCM Milano, it features a new reinforced fully integrated, and removable battery in the frame, a sleek new design, improved ergonomics, and versatility ready to tackle any journey, short or long.
The T3S offers more comfort and control than ever before and guarantees a pleasant ride thanks to an upright seating position, a low through frame, and optimized ergonomics with adjustable handlebars and a gel-padded saddle.

Key Features

• Ergonomic bicycle Grips
• Comfortable sitting posture
• All important controls are easily accessible
• Supplied with 48V to deliver a high-output power
• over 576Wh capacity for a longer distance
• reach up to 120 km (depending on the conditions)
• easily removable battery so you can charge it anywhere

Warranty

• 1-year warranty on all electronic parts (including battery, motor, controller, display, and lights)
• 2-year warranty on the bike frame. For more warranty information visit our FAQS.
• Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but may be replaced on a case by case basis within the first 6 months.
• Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.



About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality.
Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.

SPECIFICATION

Bike Components

Frame	Alu. 6061, 26″*16.5″
Suspension Fork	Suntour, NEX 26
Handlebar	FQ, FQ-155, Width 640mm, Black
Stem	ZOOM, TDS-C269-8/ISO-P
Head Set	Neco, H384M, Black
Brake Lever	Tektro, L: EL555-RT with brake sensor, R: CL530-TS
Brake	Das-Kit Hydraulic Mechanical Disc
Crank	Das-Kit, CT48A, 48T, Black
Chain	KMC, Z51, Silver
Chaincover	T7,new
Shifter Lever-Right	Shimano, Altus, R:SL-M315-7R, 7 Speed
Rear Derailleur	Shimano, Altus RD-M310
Freewheel	7 Speed, 14-28T
Tire	CST/Arisun, H-5213E, 26*1.95
Saddle	Selle Royal, FREEWAY
Seat Post	Promax, Alu. SP-252,27.2*350MM, Black
Grip	Selle Royal, JF510
Pedal	Wellgo, B087, Black
Mudguard	W:60mm, Black
Front Light	DH002, 48V, 40 Lux
Rear Light	DR009, AAA*2
Rear Reflector	CHP-GH-704
Wheel Reflector	CHP-787
Kickstand	RH, HCA-02, Black
R. Carrier	T3, Alu., Black

Electric Components

Battery	Das-Kit, i6-4812, 48V 12AH, 576WH
Motor	Das-Kit, X15, Rear drive motor, 48V 500W, 32KM/H
Controller	Das-Kit L7T with T6 Throttle
Charger	Das-Kit, 48V2A
Display	Das-Kit, L7T
Front Light	DH002, 48V, 40 Lux
Rear Light	DR009, AAA*2

Weight

Net Weight (with battery)	27kg
Battery Weight	3.5kg
Total Weight (driver+bike)	140kg
